KBR-CSDS-SW50

The KBR-CSDS-SW50 containerized seawater desalination unit features an integrated design for instant use.

Product Introduction

The KBR-CSDS-SW50 containerized seawater desalination unit features an integrated design for instant use. With exceptional mobility, it can be rapidly deployed to water-scarce areas such as islands and construction sites. It delivers stable and excellent water quality that meets drinking standards. Its compact footprint and high automation significantly shorten the construction cycle, making it the optimal solution for emergency and long-term water supply.

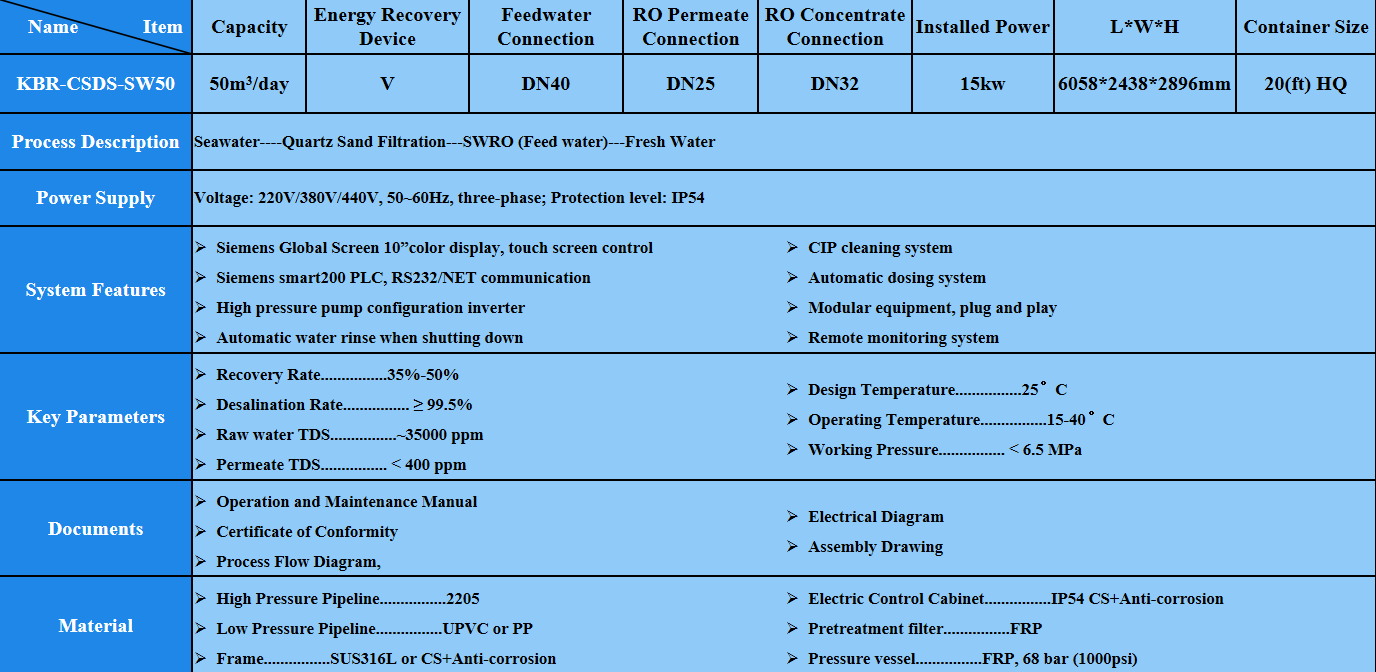

Containerized Seawater Desalination System

Model No.	KBR-CSDS-SW50
Capacity	50m³/day
Energy Recovery Device	V
Feedwater Connection	DN40
RO Permeate Connection	DN25
RO Concentrate Connection	DN32
Installed Power	15kW
Length	6058mm
Width	2438mm
Height	2896mm
Container Size	20(ft) HQ

Containerized Seawater Desalination System


Case 1-Containerized Seawater Desalination System Cases

The containerized seawater desalination unit features an integrated design for instant use. With exceptional mobility, it can be rapidly deployed to water- scarce areas such as islands and construction sites. It delivers stable and excellent water quality that meets drinking standards. Its compact footprint and high automation significantly shorten the construction cycle, making it the optimal solution for emergency and long-term water supply.

Client	Shandong
Item	Feed Water	Effluent Water
Capacity (m³/d)	200	100
Feed EC (us/cm)	43500	< 310
Temp (°C)	10~35	10~35

Case 2-Seawater RO membrane on the Island for Drinking Water

Model	NA	SW-8040-400-HR
RO Feed EC	us/cm	46000
Feed Boron	ppm	3
Temp	°C	15-30
Start-Up Date	-	2025.12
Permeate Flux	m³/h	3.5
Recovery	%	40
PV Configuration	NA	1:1:1
Element per PV	NA	3
Product EC	us/cm	320
Product Boron	ppm	0.56
Salt Rejection	%	99.3
Boron Rejection	%	81
Feed Pressure	bar	40-50

The containerized seawater desalination unit features an integrated design for instant use. With exceptional mobility, it can be rapidly deployed to water-scarce areas such as islands and construction sites. It delivers stable and excellent water quality that meets drinking standards. Its compact footprint and high automation significantly shorten the construction cycle, making it the optimal solution for emergency and long-term water supply.
