KBR-CPWS-PW50

The Containerized Pure Water System is designed and constructed on a reduce footprint, generally adopting membrane treatment system.

Product Introduction

The Containerized Pure Water System is designed and constructed on a reduce footprint, generally adopting membrane treatment system. By using new innovation of integrated Membrane treatment with Softening resin.

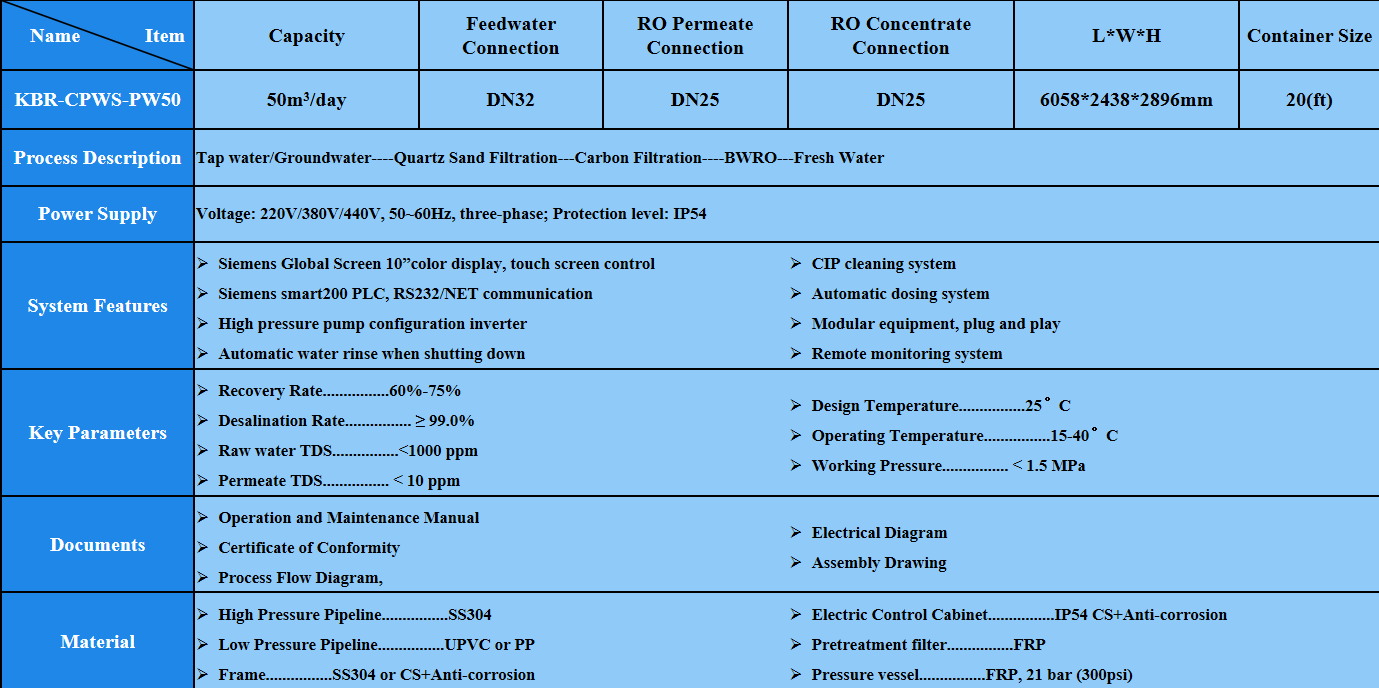

Containerized Pure Water System

Model No.	KBR-CPWS-PW50
Capacity	50m3/day
Feedwater Connection	DN32
RO Permeate Connection	DN25
RO Concentrate Connection	DN25
Length	6058mm
Width	2438mm
Height	2896mm
Container Size	20(ft)

Containerized Pure Water System (50m3/day)


Case 1-Containerized Pure Water System Cases

Client	Russia
Item	Feed Water	Effluent Water
Capacity (m3/d)	1500	960
Turbidity	24.6	ND
Salt Content (mg/L)	247.0	ND
Total Hardness (mg/L)	10.0	<0.01
Applied Pressure (Bar)	<5	-
