KBR-SA15

The containerized integrated sewage treatment equipment, also known as corrugated board integrated sewage treatment equipment, features an exterior made entirely of corrugated steel plates.

Product Introduction

The containerized integrated sewage treatment equipment, also known as corrugated board integrated sewage treatment equipment, features an exterior made entirely of corrugated steel plates. This design offers an attractive appearance and high strength. The containerized integrated sewage treatment equipment has evolved to its third generation after years of development. The four corner columns of the box have also been redesigned from the traditional container construction method, adopting an integrated molding approach. The internal structure of the equipment has been fully integrated with the corrugated board structure based on years of production experience. This includes components such as the internal sludge hopper, distribution system, and weir structures.

Application Field

Domestic Wastewater or Hospital Wastewater

Product Features

1：

The appearance relies on corrugated plates, offering both aesthetic appeal and high strength.

2：

Dimensions are not limited to standard container sizes; customization is available with flexible options.

3：

Treatment units can be designed as single or multiple sets, tailored to site conditions.

4：

Unrestricted by process constraints, various technologies such as A/O, AA/O, AO+MBR,MBBR, etc., can be used.

5：

Can be installed either underground or above ground.

6：

Options are available for including equipment rooms or adjustment tanks

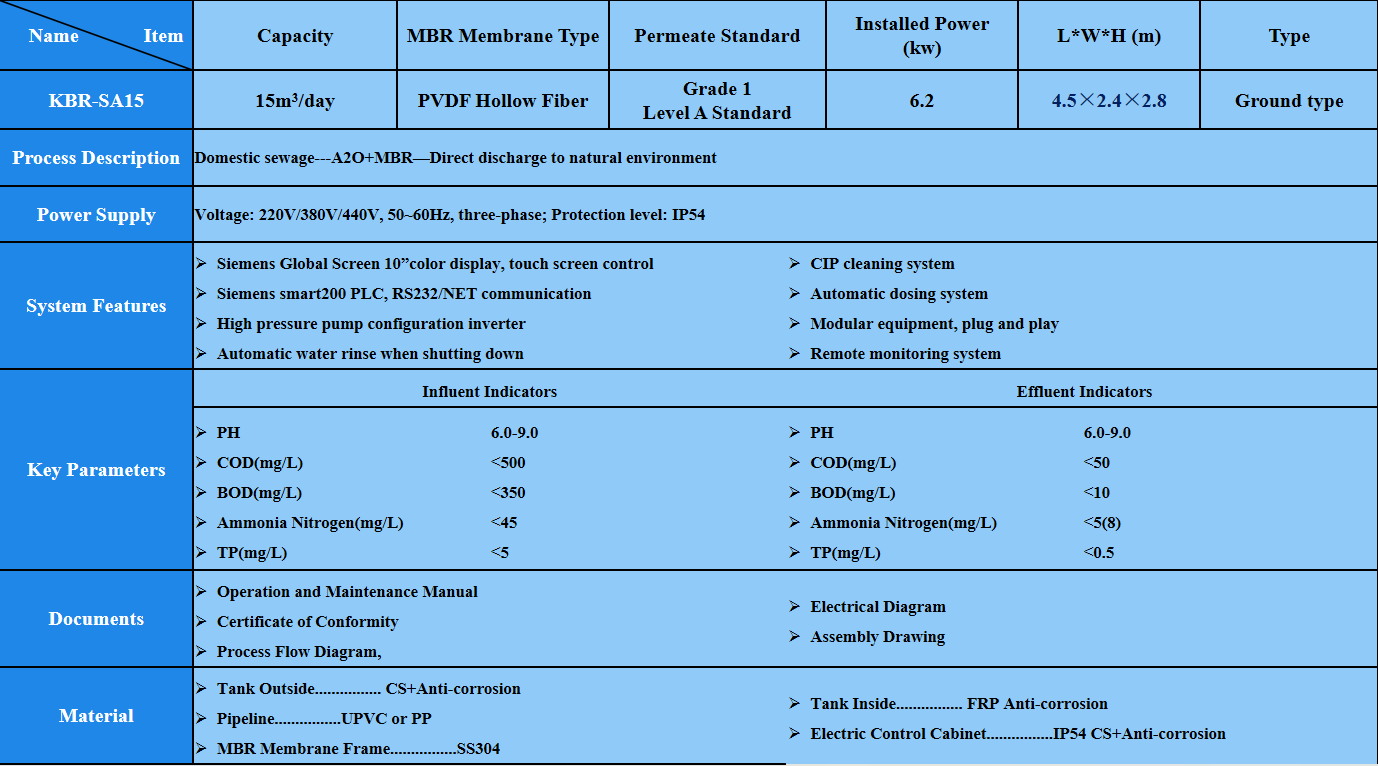

Integrated MBR Sewage Treatment System

No.

Model

Capacity

（m3/d）

Size

(m)

Installed Power

(kw)

Discharge standard

Treatment Process

KBR-SA15

4.5×2.4×2.8

6.2

Grade 1A

A2O+MBR

Performance Parameters

The core component of the equipment is the Membrane Bioreactor (MBR). The influent and effluent water quality parameters are as follows:

No.	Specification	Influent Indicators	Effluent Indicators
1	pH	6.0-9.0	6.0-9.0
2	COD(mg/L)	<500	<50
3	BOD(mg/L)	<350	<10
4	Ammonia Nitrogen(mg/L)	<45	<5(8)
5	TP(mg/L)	<5	<0.5

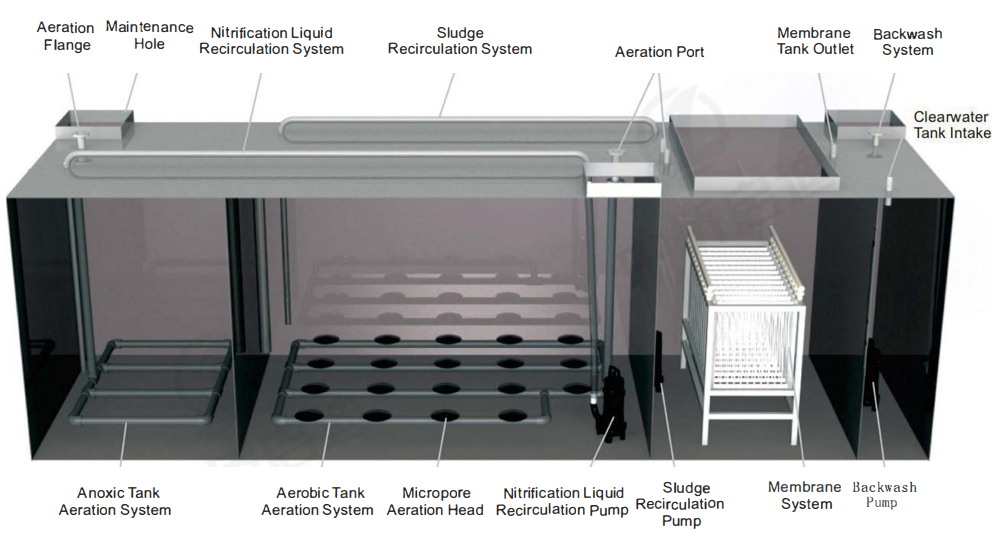

Integrated MBR System


Integrated MBR Sewage Treatment System (15m3/day)


Case 1-Integrated MBR System Cases

The integrated MBR+NaClO disinfection process integrates membrane separation and high-efficiency disinfection, featuring small footprint and high automation. It deeply removes suspended solids and pathogens, ensuring stable and excellent effluent quality for easy discharge. Easy to install, simple to operate and maintain, it effectively resolves pain points of limited land and non-compliant effluent.

Client	Anhui
Item	Feed Water	Effluent Water
Capacity (m3/d)	60	60
COD (mg/L)	<350	<40
NH3-N(mg/L)	40~50	<10
TP (mg/L)	2.5-3.0	<0.3
Colibacillus (MPN/L)	10⁶～10⁸	<10
