CFM-1040B-M0.1 Ceramic Flat Membrane

Ceramic flat sheet membranes are high-performance inorganic porous elements sintered at high temperature from alumina, titania and other raw materials.

Product Introduction

Ceramic flat sheet membranes are high-performance inorganic porous elements sintered at high temperature from alumina, titania and other raw materials. Adopting an asymmetric multi-layer structure, they support microfiltration and ultrafiltration separation. They feature outstanding chemical corrosion resistance, thermal stability, high mechanical strength and excellent antifouling ability. With stable flux and long service life, they are widely applied in MBR, industrial and municipal wastewater treatment, water purification and seawater desalination pretreatment.

Application Field

Drinking water purification

Municipal wastewater treatment

Industrial wastewater treatment

Membrane bioreactor (MBR) system

Seawater & brackish water desalination pretreatment

Product Features

1：

High flux (500-2600 LMH)

2：

Long Service Life (10-15 years)

3：

High Porosity (≥40%)

4：

High Strength (>50 Mpa)

5：

Eco-friendly Materials

6：

Stable Chemical Performance

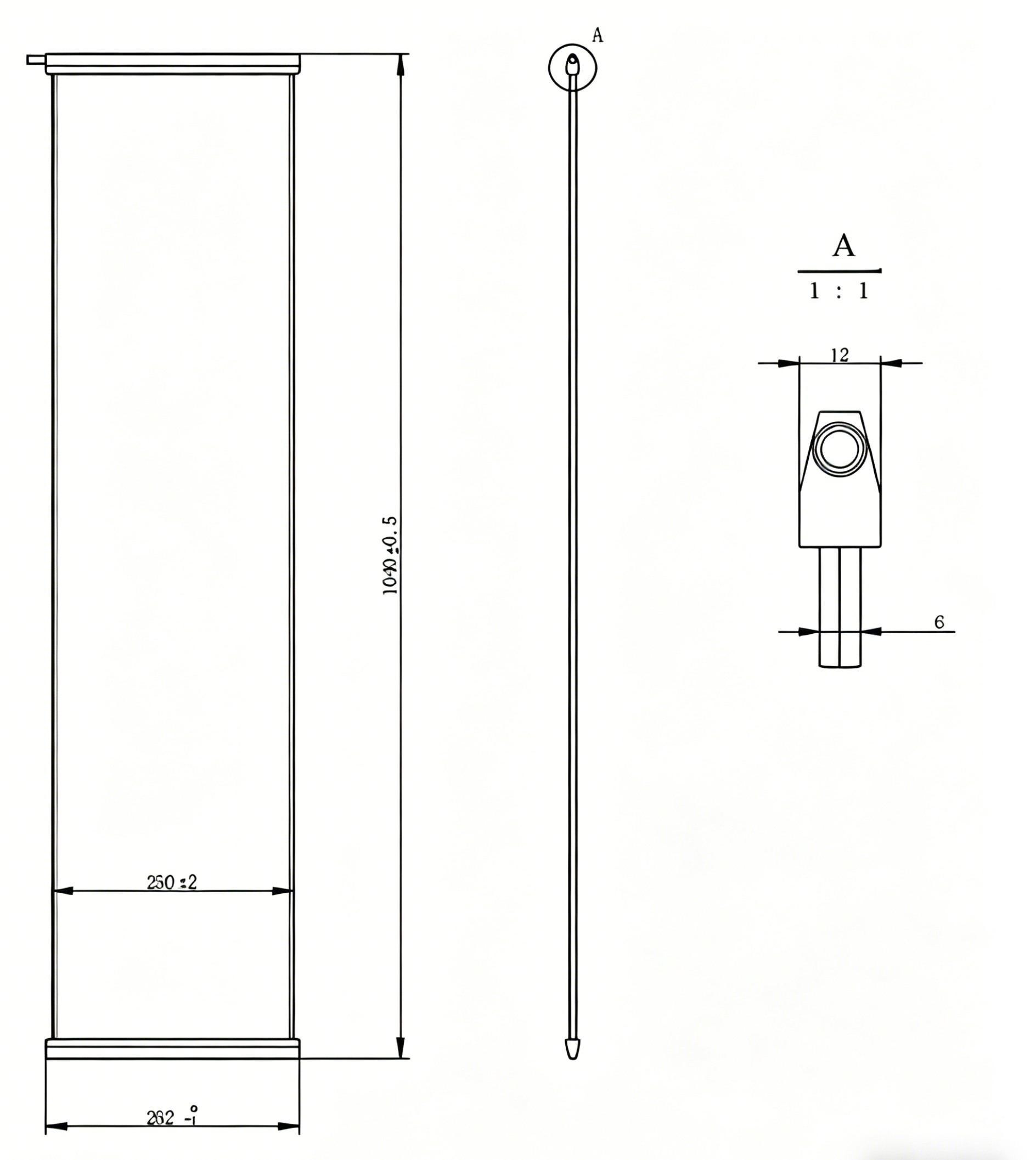

Product Specifications

Model	CFM-1040B-M0.1
Membrane Area (m²)	0.500
Size (mm)	104026012
Weight (kg)	2.50
Water Outlet	Conducting/Hose Connection
Operating Temperature (°C)	0-85
pH Range	2-12
Material	Al₂O₃
Typical Pore Size of Membrane Layer	30-200nm
Flexural Strength	>50 Mpa
Porosity	>40%
Hardness	>4(Mohs)
Pure Water Flux	500-2600 LMH
Endcap Material	PPO/PPS
Adhesive	PU/Epoxy
