CFMM-S-36C Ceramic Flat Membrane Module

Product Introduction

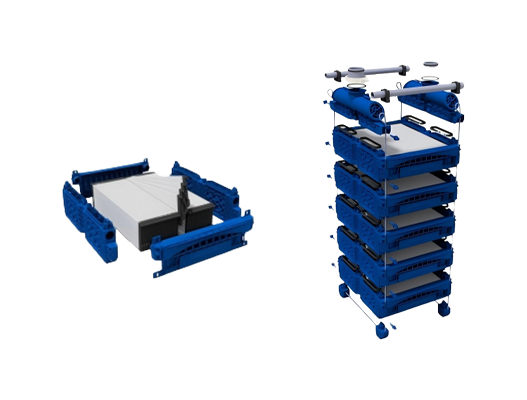

Based on the inherent advantages of ceramic membranes — high flux, high filtration precision, excellent antifouling performance, corrosion resistance and long service life — innovative integration is adopted with a stackable tower structure and full corrosion-resistant stainless steel construction. The modular design allows single-layer maintenance, doubles the packing density for a compact and high-efficiency layout, and eliminates failure-prone components to completely prevent leakage.

Application Field

Drinking water purification

Municipal wastewater treatment

Industrial wastewater treatment

Membrane bioreactor (MBR) system

Seawater & brackish water desalination pretreatment

Product Features

1：

High Packing Density (36m2)

2：

Modular Design, Easy Installation

3：

Good Water Quality (turbidity ≤0.1 NTU)

4：

PPO Material Corrosion-resistant

5：

Membrane Element Assembled Individually

6：

Stable Chemical Performance

Product Specifications

Model	CFMM-S-36C
Ceramic Membrane Model	CFM-616A-M0.1
Membrane Area (m²)	36
Size (mm)	960780800
Weight (kg)	200
Membrane Frame Material	Stainless steel/PPO
Number of Membrane (pcs)	204
