PTFE-MDG-4510 Degassing Membrane Contactor

The MDG-4510 Degassing Membrane Contactor adopts Cooperate's PTFE hollow fiber membrane weaving process to ensure great effectiveness.

Product Introduction

The MDG-4510 Degassing Membrane Contactor adopts Cooperate's PTFE hollow fiber membrane weaving process to ensure great effectiveness. The membrane has a large surface area and excellent water production stability, making it capable of achieving efficient degassing at ppb levels. This component is compact and adaptable and effectively removes dissolved gases in liquids to achieve ideal degassing effects.

Application Field

Biochemical analyzer degassing

Degassing of laboratory water and analytical instruments

Ultrapure water degassing

Liquid degassing in pharmaceutical manufacturing

Biochemical pure water degassing

Product Features

1：

Efficient online degassing with minimal pressure loss

2：

Compact design that occupies minimal space

3：

High rate of dissolved oxygen removal

4：

Ultra-clean with no secondary pollution

5：

Longer lifespan

Material

Components	Materia
Shell	CPVC
Membrane	PTFE
Sealing ring	Epoxy resin

Specification

Maximum flow	2000ml/min
Membrane area	1.8m²
Interface	Vacuum interface RC1/8
Interface	Liquid connection RC1/4
Maximum operating pressure	0.2MPa@45℃
Maximum operating temperature	45℃/113℉
Maximum vacuum pressure	-98KPa
Save method	Dry storage

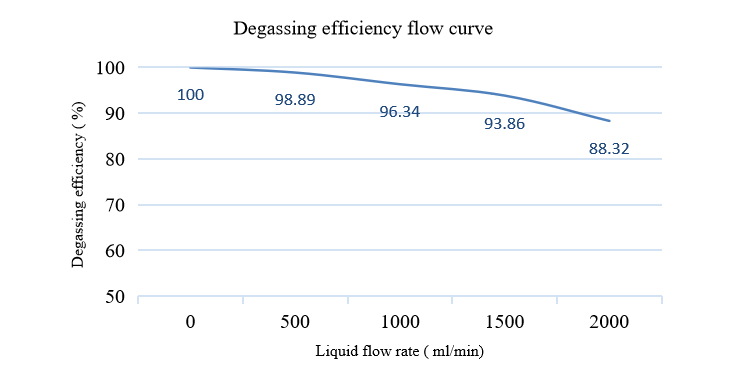

Gas flux test of degassing membrane module

Note: In this test, the test fluid is 25℃ pure water. The above test data is the average level curve of this type of membrane contactor, and the deviation between the individual membrane contactors and the average level is within ±3% .
