PMP-MBC-2508 Anti-Static Membrane Contactor

Cooperate has developed an anti -static membrane contactor, which utilizes a unique PMP hollow fiber membrane.

Product Introduction

Cooperate has developed an anti -static membrane contactor, which utilizes a unique PMP hollow fiber membrane.This membrane serves as a medium to supply CO2 into ultrapurewater, ensuring rapid and controllable dissolution of CO2. The product effectively maintains system outlet stability, and it can enhance gas utilization efficiency while reducing gas consumption.

Application Field

Microcircuit chip cutting and cleaning

Photomask cutting and cleaning

Wafer cutting and cleaning

Semiconductor silicon wafer cutting and cleaning

Solar cell cutting and cleaning

Controlled ultrapure water resistors for special industries

Product Features

1：

Ultra-clean with no secondary pollution

2：

High efficiency in dissolving gas

3：

Stable resistivity of produced water

4：

Longer service life

5：

High gas utilization rate, saving gas consumption

6：

Small size, occupying less space while offering a large flow rate

Material

Components	Materia
Shell	PPO
Membrane	PMP
Sealing ring	EPDM
Potting	Epoxy resin

Specification

Flow rate range	50-300L/h
Membrane area	1.8m²
Interface	Liquid inlet and outlet NPT 1/4
Interface	Gas phase interface NPT 1/4
Maximum operating temperature	55 ℃ /131 ℉
Maximum operating pressure	0.3MPa@55°C
Maximum vacuum pressure	-98KPa
Save method	Dry storage

Experimental Data

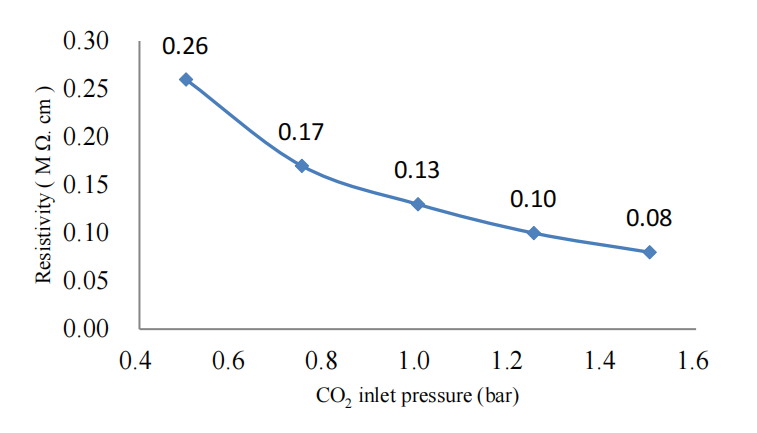

Note：The test temperature is 25℃ and the test liquid is 18.25·MΩ.cm ultrapure water. The water flow rate is 220L/h. The contactor's CO₂ filing efficiency data represent the average performance curve of this type of membrane contactor. Each individual membrane contactor may deviate from the average level by up to ±3%.	Note：In this test, the test fluid is 25℃ pure water. The above pressure loss data is the average level curve of this type of membrane contactor, the individual, and The average deviation is within ±3%.
