Description: Discover how a 2025 ultrafiltration and nanofiltration system in Volkhov, Russia, overcame extreme cold-climate challenges — low-temperature raw water, high turbidity (24.6 NTU), elevated iron (3.2 mg/L), and organic loads (permanganate index 47.2 mgO₂/L) — to deliver compliant water for municipal supply and food processing industries. Full process flow, design parameters, and operational insights included.

1.Project Overview
1.1 Project at a Glance

1.2 The Volkhov River: A Demanding Source

The Volkhov River, flowing from Lake Ilmen to Lake Ladoga in northwestern Russia, presents a classic high-latitude surface water profile. Its characteristics — shaped by boreal watershed runoff, seasonal ice cover, and peatland-derived organics — create one of the most challenging feedwater scenarios for membrane-based treatment:

· Extreme seasonal temperature swings: Surface water temperatures range from near 0 °C (winter under ice) to 18–20 °C (summer), directly impacting membrane flux and chemical reaction kinetics.

· Ice cover duration: The river is typically ice-bound for 4–5 months annually (November–March), requiring intake designs that function reliably beneath ice layers.

· High organic loading: The permanganate index of 47.2 mgO₂/L reflects substantial humic and fulvic acid content from surrounding peatlands, a well-known ultrafiltration foulant.

· Elevated iron and manganese: Total iron at 3.2 mg/L (typical for anoxic groundwater-influenced surface waters in the region) demands robust pre-oxidation and rejection strategies.

2.Cold-Climate Water Treatment Challenges in Northwest Russia

Operating a membrane water treatment plant above the 59th parallel north introduces a set of engineering challenges rarely encountered in temperate-zone projects. The Volkhov installation had to address each of the following:
2.1 Low-Temperature Feedwater and Membrane Performance
Water viscosity increases significantly as temperature drops. At 0.5 °C — a realistic winter raw water temperature — viscosity is approximately 1.8× higher than at 20 °C. This directly translates to:
·Reduced membrane permeability: Flux rates can drop by 40–50% compared to standard design conditions (20–25 °C).
·Higher transmembrane pressure (TMP) requirements, increasing energy consumption per cubic meter of permeate.
·Slower chemical cleaning kinetics: CIP (Clean-in-Place) cycles using citric acid or NaOCl require extended contact times or elevated temperatures in winter.
Design countermeasures implemented:
·Over-sizing of membrane area by approximately 30–35% to maintain design permeate output at 1–2 °C.
·Submerged heat exchanger on the raw water tank feed line, enabling feedwater pre-heating to 5–8 °C before membrane contact.
·Electrical heating elements integrated into the filtered water tank to prevent post-treatment freezing.

2.2 Ice Formation and Raw Water Intake

River ice presents both physical (blockage, equipment damage) and operational (intermittent supply) risks. The Volkhov River intake system incorporated:

· A rotary coarse screen as the first-stage physical barrier, capable of handling ice slush and frazil ice accumulation without clogging.

· Intake structure designed with submerged inlet ports positioned below the historical minimum ice thickness (typically 60–80 cm in this region).

· Redundant feed pumps (Feed Pump 1 and Feed Pump 2) with automatic switchover to maintain uninterrupted flow during ice-induced pressure fluctuations.

2.3 High Iron, Turbidity, and Organic Load

The raw water entering the Volkhov plant presents a multi-contaminant challenge:

3.Process Technology: Multi-Barrier Membrane Treatment

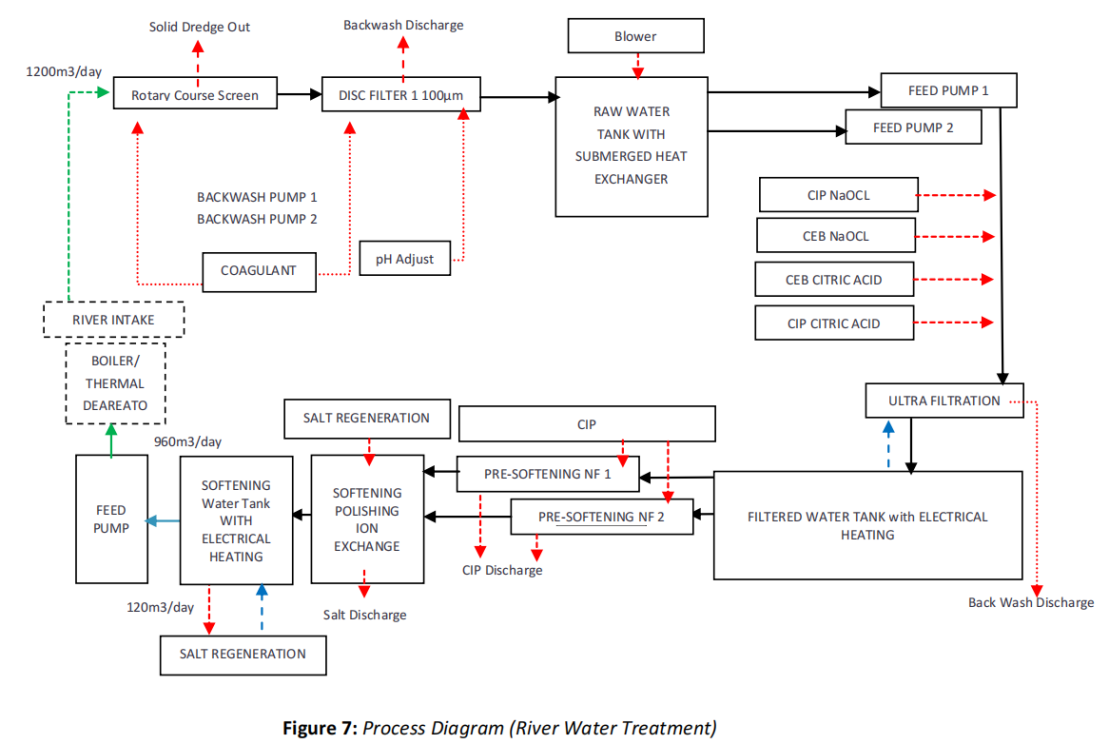

3.1Full Process Flow Diagram
The Volkhov plant employs a multi-barrier treatment train designed for reliability rather than minimalism — a conscious engineering decision for remote-location plants where downtime is disproportionately costly.

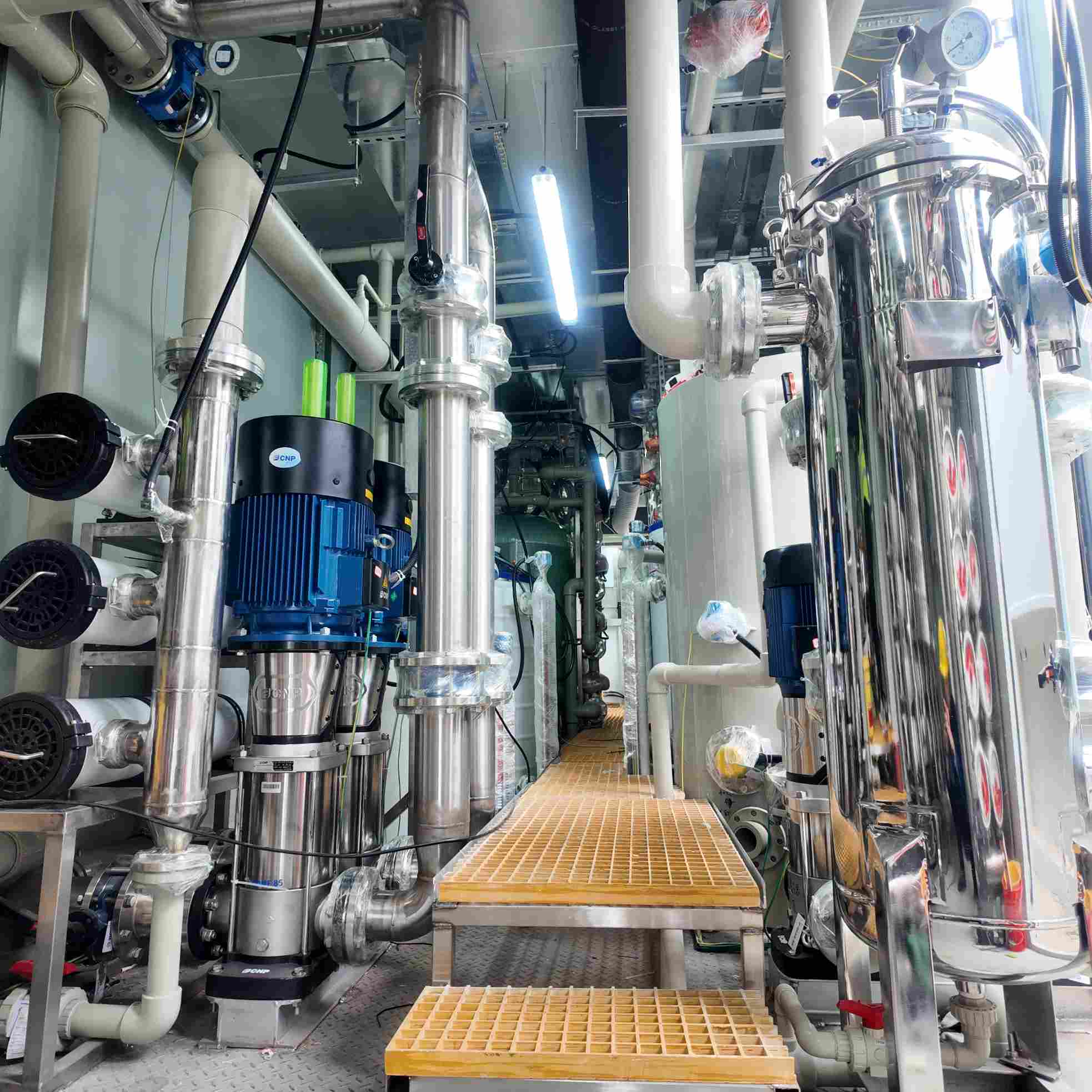

3.2 Pretreatment Stage: Physical Barriers

Disc Filter (1,100 μm) : Positioned after the rotary screen, this 1.1 mm disc filter removes coarse suspended solids and protects downstream UF membranes from abrasive damage. At 142 mg/L influent suspended solids, this stage is non-negotiable for membrane longevity.

Coagulant and pH Adjustment: Inline coagulant dosing before UF enhances the removal of dissolved organic carbon (DOC) and colloidal iron. pH adjustment optimizes coagulation conditions for the specific humic-rich water matrix.

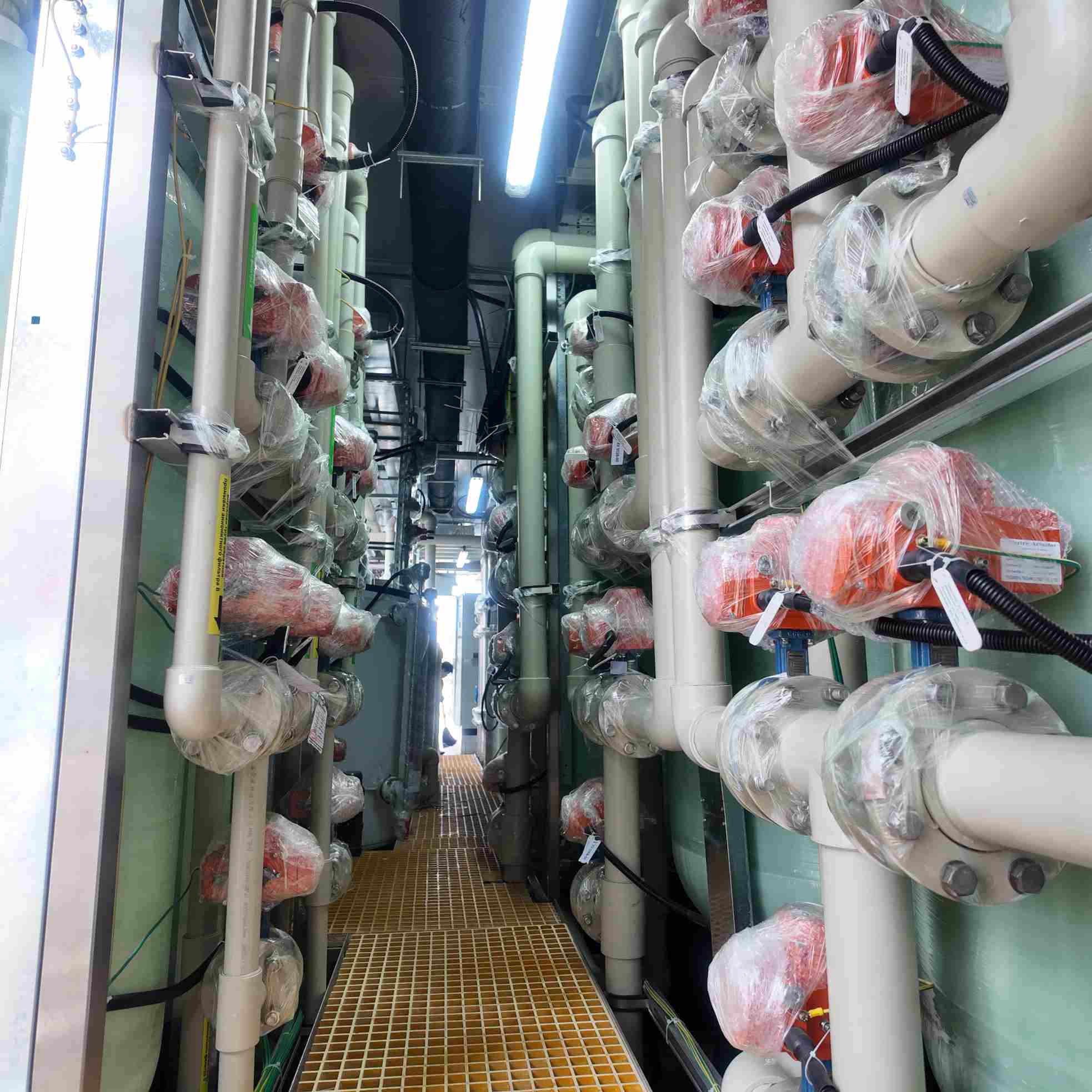

3.3 Ultrafiltration: Core Barrier

The UF membranes serve as the primary turbidity, pathogen, and macromolecular organic barrier. Key operational characteristics:

· Membrane type: Hollow-fiber pressurized UF (likely PVDF or PES, selected for chlorine tolerance to enable NaOCl backwash).

· Filtration mode: Dead-end with periodic backwash, optimized for the moderate-to-high turbidity feed.

· CEB (Chemically Enhanced Backwash) : NaOCl CEB for organic fouling control; citric acid CEB for inorganic scaling (iron, hardness).

· CIP frequency: Estimated every 4–8 weeks based on feed water variability; citric acid CIP for metals, NaOCl CIP for biofouling/organics.

· Recovery rate: Projected at 88–92%, with backwash discharge of approximately 120 m³/day directed to solids handling.

3.4 Nanofiltration Softening: Targeted Hardness Removal

A two-stage NF softening train reduces total hardness from 4.0 mg-eq/L to < 0.015 mg-eq/L:

· NF membranes: Likely selective divalent-ion rejection membranes (e.g., NF270 or equivalent), rejecting Ca²⁺ and Mg²⁺ while allowing monovalent ions (Na⁺, Cl⁻) to pass — preserving beneficial mineral balance for drinking water applications.

· Two-stage configuration: Enhances overall recovery and reduces concentrate volume compared to single-stage designs.

· Concentrate management: Salt regeneration discharge stream managed separately from other waste streams.

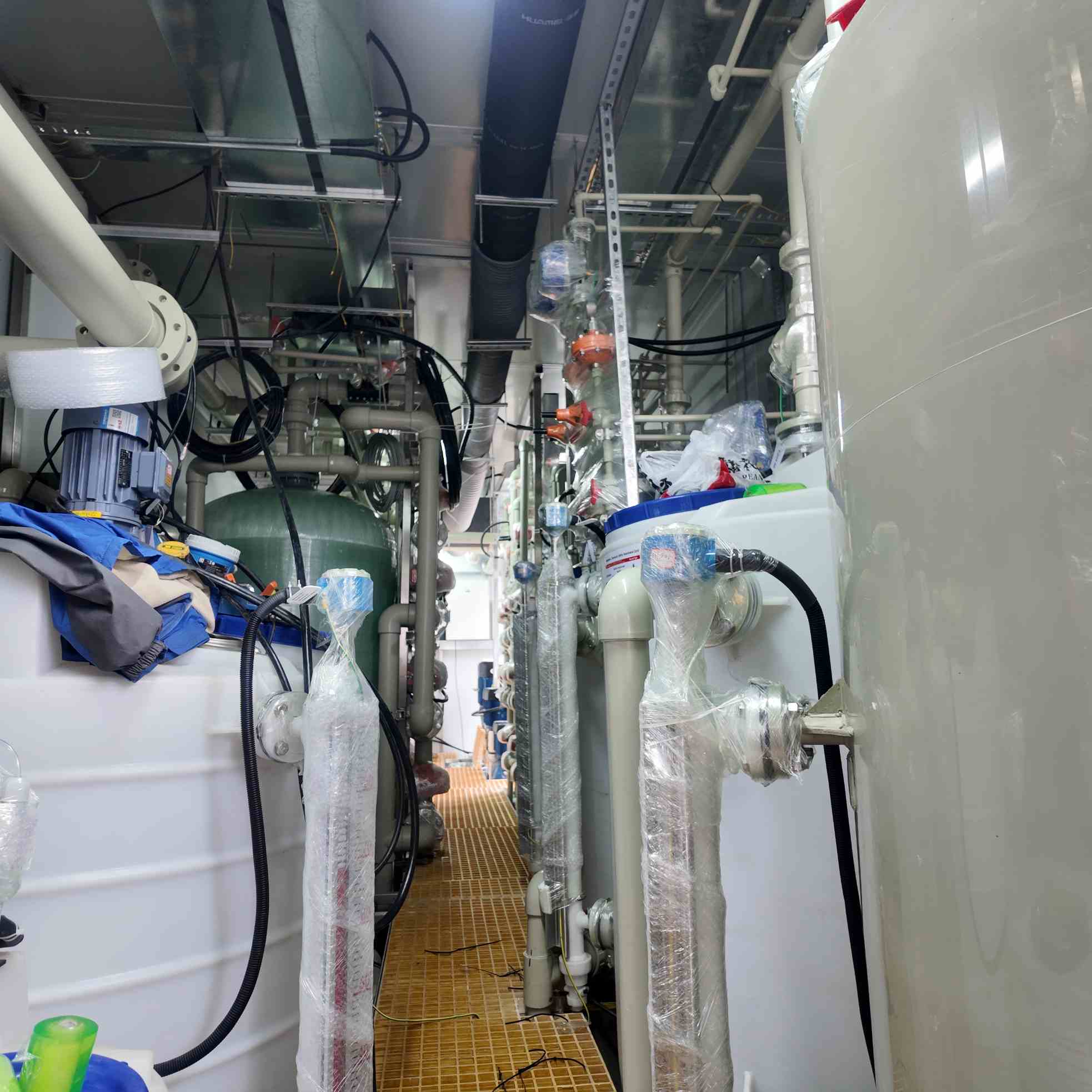

3.5 Ion Exchange Polishing

A final ion exchange polishing bed provides the “safety net” — ensuring the < 0.015 mg-eq/L hardness target is met even under NF membrane performance drift or seasonal water quality spikes. Salt regeneration is integrated into the plant’s chemical handling infrastructure.

3.6 CIP and Waste Stream Management

4.Operational Performance and Water Quality Benchmarks

4.1 Achieved Effluent Quality

The treated water meets and exceeds Russian SanPiN drinking water standards and aligns with EU Directive 2020/2184 key parameters:

4.2 Energy and Chemical Consumption Estimates

Based on industry benchmarks for similar cold-climate UF-NF-IEX plants:

4.3 Cold-Weather Reliability Features

· Submerged heat exchanger: Maintains UF feed temperature at ≥ 5 °C year-round, preventing flux collapse.

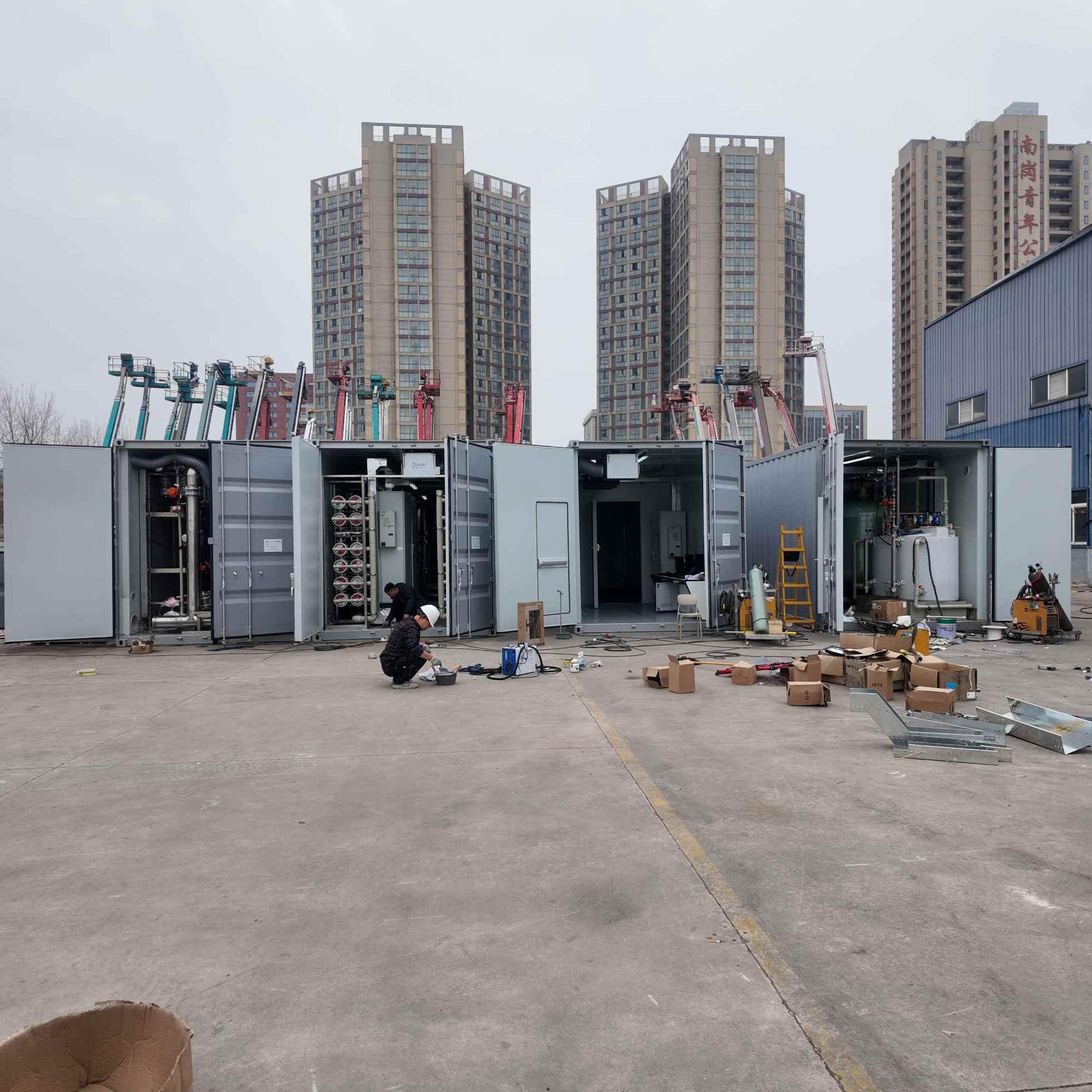

· Building envelope: All membrane skids and chemical storage housed in an insulated, heated building (internal temperature maintained at 10–15 °C minimum).

· Redundant pumping: Feed pumps and backwash pumps configured in 2×100% or 3×50% redundancy to ensure uninterrupted operation.

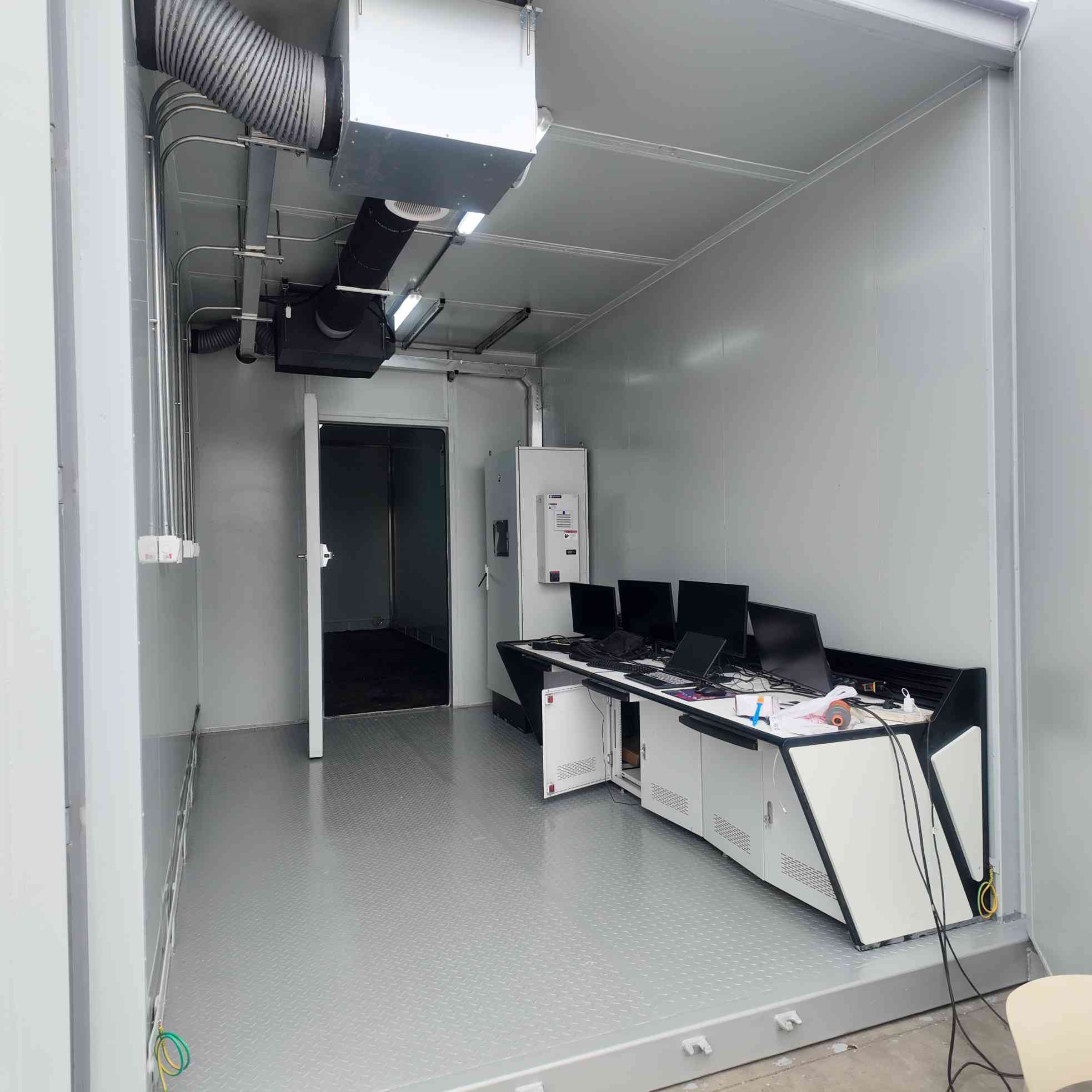

· Remote monitoring: SCADA-based remote monitoring enables off-site oversight, reducing the need for on-site operator presence during extreme weather events.

5.Industrial Applications and End-Use Diversity

One distinguishing feature of the Volkhov project is the breadth of end-use applications served by a single treatment plant:

The diverse end-use portfolio demonstrates the system’s flexibility: the same membrane skid produces water suitable for both human consumption (highest standard) and industrial processes, with distribution managed by the post-treatment storage and pumping infrastructure.

6.Key Takeaways: Lessons for Cold-Climate Water Projects

6.1 Design Philosophy: Oversize, Don’t Optimize to the Limit

In remote high-latitude locations, the cost of undersized capacity — lost production days, emergency trucked water, reputation damage — far exceeds the incremental capital cost of 30–35% membrane area over-design. The Volkhov approach of “design for January, not July” should be standard practice above the 55th parallel.

6.2 Multi-Barrier Beats Single-Stage

The UF → NF → IEX chain provides defense-in-depth: if one stage underperforms (e.g., NF membrane fouling reducing hardness rejection), the downstream ion exchange bed absorbs the spike. This is particularly valuable in regions where skilled operator availability is limited and membrane replacement logistics are slow.

6.3 Heat Integration is Non-Negotiable

The submerged heat exchanger on the raw water tank, coupled with boiler/thermal energy input, transforms the plant from a “seasonally operable” system to a “year-round reliable” asset. Without feedwater pre-heating, winter permeate output would drop by 40–50%, rendering the design capacity meaningless for 4–5 months each year.

6.4 Full Waste Stream Planning

The Volkhov plant’s explicit accounting for backwash discharge (120 m³/day), CIP waste, and salt regeneration brine — each with dedicated handling paths — reflects mature engineering. Projects that treat waste management as an afterthought invariably face regulatory and operational crises within the first year.

7.Conclusion

The Volkhov River Membrane Water Treatment Project demonstrates that modern UF-NF-IEX technology, when properly engineered for the specific challenges of high-latitude surface water, can deliver drinking-water-grade output from one of the most demanding raw water profiles in European Russia. The project’s success rests on three pillars: cold-climate design margins (over-sized membranes, feedwater pre-heating, insulated housing), multi-barrier process architecture (UF → NF → IEX), and end-use flexibility (single plant serving municipal and 10+ industrial applications).

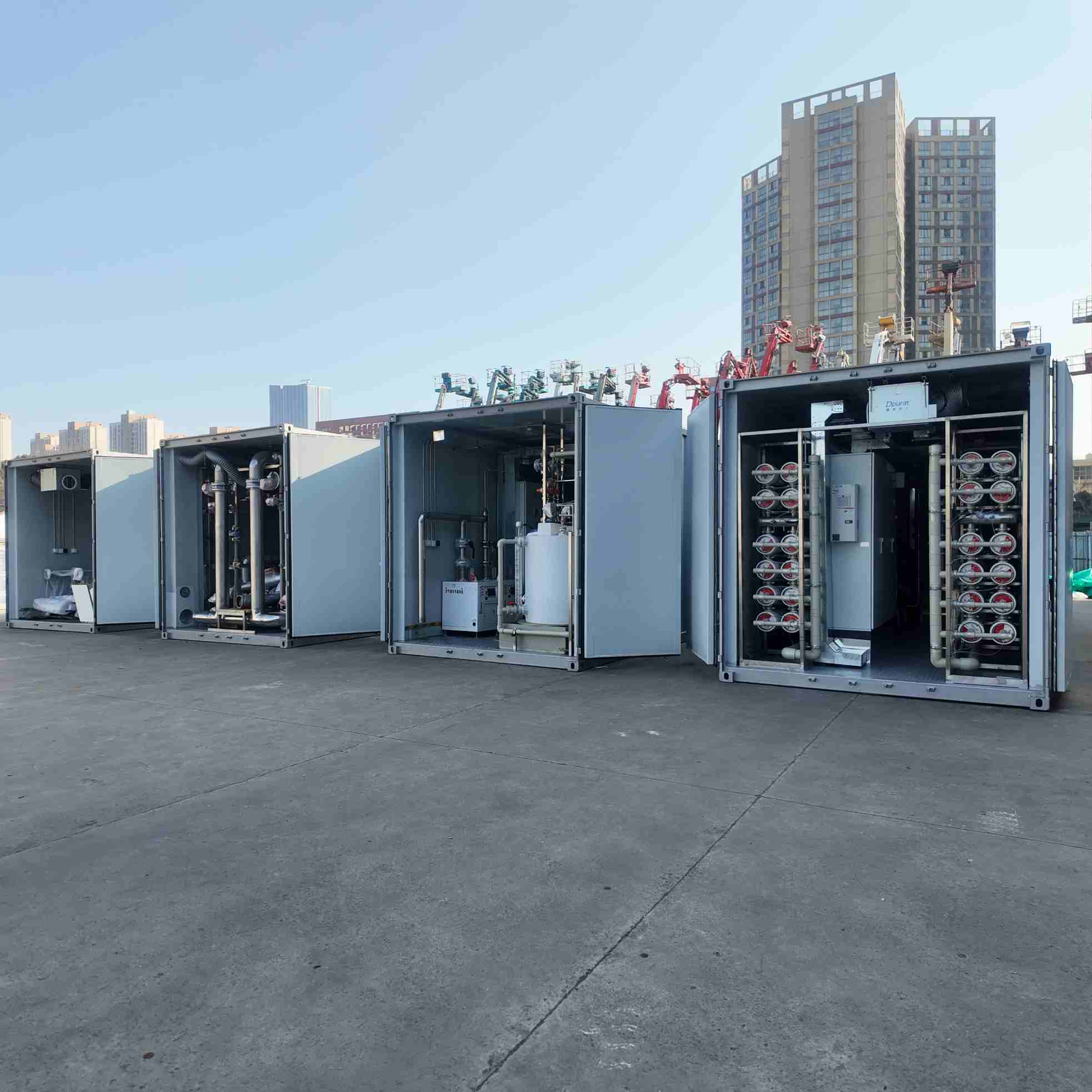

This high difficulty project uses ultrafiltration UF-08-220 (40 units)+nanofiltration NF-8040 (70 units), with a daily filtration capacity of 1440m3/d and an operating cost of only 3-3.5 yuan/ton It marks a higher level of maturity for water treatment solutions in extreme scenarios in the future
