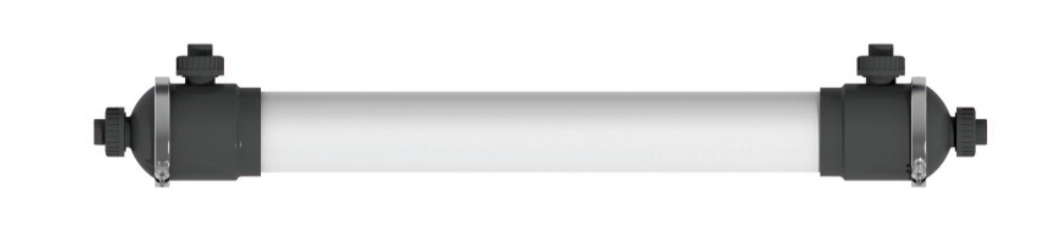

UF01-160

Product Introduction

Application Field

Drinking water purification,

RO pre ptreatment,

reuse water projects

municipal & industrial wastewater treatment, etc.

Product Features

1：

High-strength PVDF hollow fiber with excellent oxidation and chemical resistance

2：

Stable permeability and strong anti-fouling performance

3：

High packing density, compact structure, small footprint

4：

Suitable for long-term continuous operation

5：

Fully tested before delivery for integrity and performance

Performance Specifications

Item	Specification
Membrane Material	PVDF (reinforced hollow fiber)
Nominal Pore Size	0.03 μm
Effective Membrane Area	40 m2

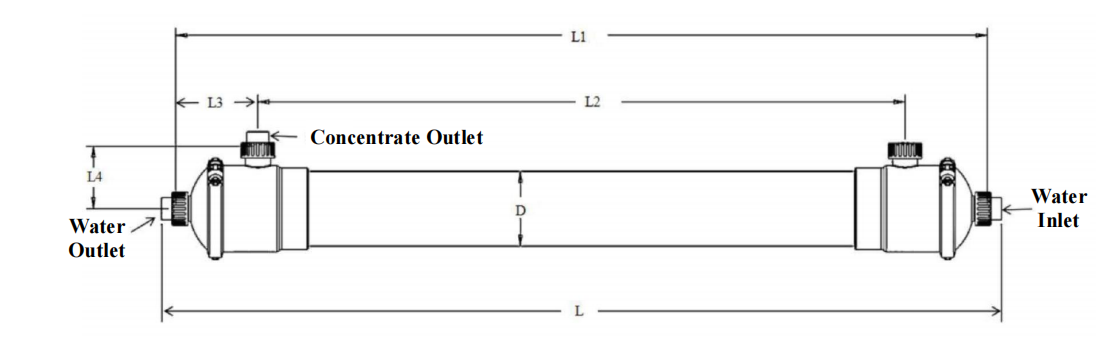

Module Dimensions	Φ160 × 1800 mm
Design Flux (20°C)	1.8~2.5 m3/h per module
Maximum Permeate Flow	6.0 m³/h per module
Max. Operating Pressure	0.60 MPa
Max. Trans-membrane Pressure (TMP)	0.20 MPa
Max. Backwash Pressure	0.25 MPa
Operating Temperature	1~40 °C
Operating pH Range	2~11
Cleaning pH Range	1~12
Dry Weight	Approx. 16 kg
Wet Weight	Approx. 20 kg
Filtration Mode	Dead-end / cross-flow
