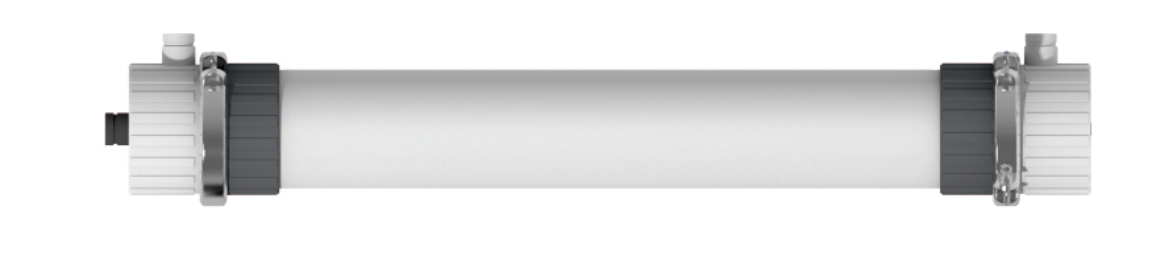

UF10-0880

Product Introduction

Application Field

Industrial utility water

industrial wastewater reuse

municipal wastewater reuse

municipal drinking water

RO/NF pretreatment

Product Features

1：

High strength and excellent flexibility, ensuring long-lasting durability.

2：

Good hydrophilicity with easy cleaning and wettability, which enables stable performance over the long term

3：

0.03µm nominal pore size effectively removes colloidal particulate, bacteria, and virus.

Performance Specifications

Item	Specification
Membrane Material	PVDF
Nominal Pore Size	0.03 μm
Effective Membrane Area	77 m2

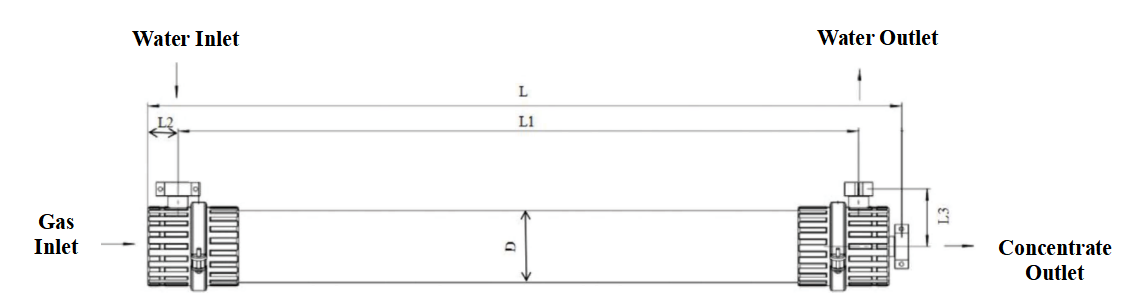

Module Dimensions	Φ225 × 1863 mm
Design Flux (20°C)	50–120 LMH
Max. chlorine concentration	2000 ppm
Max. Operating Pressure	0.60 MPa
Max. Trans-membrane Pressure (TMP)	0.20 MPa
Max. Backwash Pressure	0.25 MPa
Operating Temperature	1~40 °C
Operating pH Range	2~11
Cleaning pH Range	2~12
Dry Weight	Approx. 61 kg
Wet Weight	Approx. 100 kg
Filtration Mode	Dead-end / cross-flow (In)
