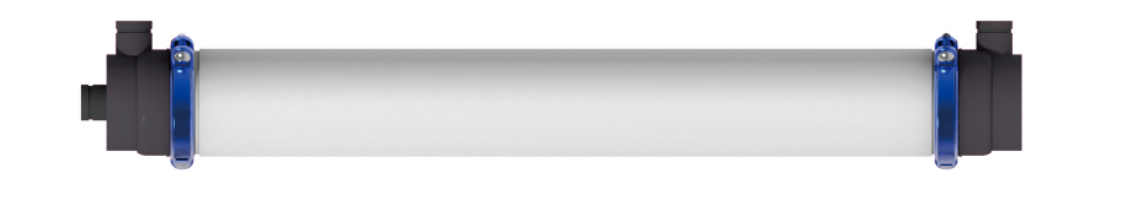

UF08-220-55/64

Product Introduction

Application Field

municipal water

wastewater reuse

RO pretreatment

industrial process water

Product Features

1：

0.02um pore size produces high quality filtrate

2：

Direct replacement for Pentair Ultrafiltration membrane

3：

Inside-out flow, no air scour needed

4：

Excellent chemical resistance

5：

Typical permeate SDI

Performance Specifications

Item	Specification (UF08-219-55)	Specification (UF08-219-64)
Membrane Material	PES	PES
Nominal Pore Size	0.02 μm	0.02 μm
Effective Membrane Area	55 m2	64 m2

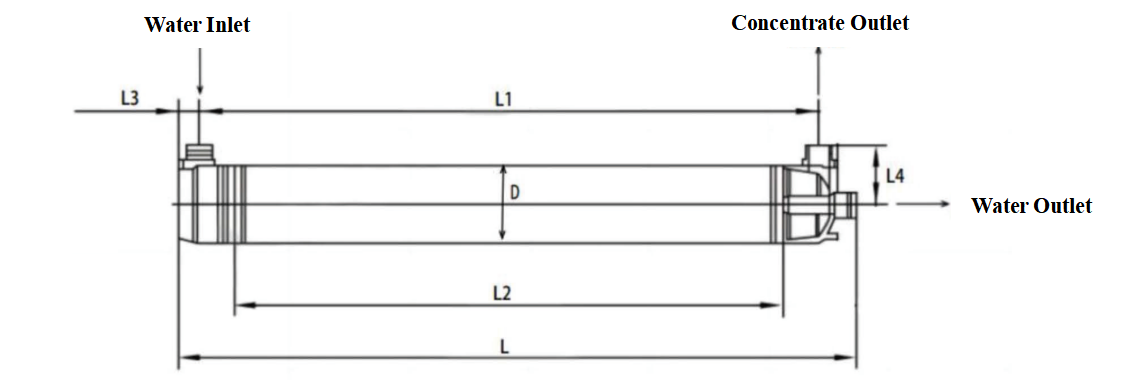

Module Dimensions	Φ220 × 1537 mm	Φ220 × 1537 mm
Design Flux (20°C)	50–120 LMH	50–120 LMH
Max. chlorine concentration	500 ppm	500 ppm
Max. Operating Pressure	0.30 MPa	0.30 MPa
Max. Trans-membrane Pressure (TMP)	0.20 MPa	0.20 MPa
Max. Backwash Pressure	0.20 MPa	0.20 MPa
Operating Temperature	1~40 °C	1~40 °C
Operating pH Range	2~13	2~13
Cleaning pH Range	1~13	1~13
Dry Weight	Approx. 34 kg	Approx. 34 kg
Wet Weight	Approx. 66 kg	Approx. 66 kg
Filtration Mode	Dead-end / cross-flow (In)	Dead-end / cross-flow (In)
