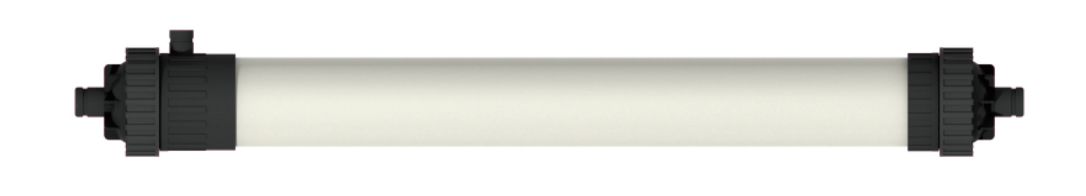

UF05-180
Product Introduction
Application Field
municipal water
wastewater reuse
RO pretreatment
industrial process water
Product Features
1：
0.02 μm absolute: Removes bacteria, viruses, colloids, SDI ≤2.5
2：
High solids tolerance: Handles up to 200 NTU peaks with AS/BW
3：
Fouling‑resistant PVDF: Lower cleaning frequency, longer life
4：
Strong & durable: Withstands pressure spikes and chemical exposure
5：
RO‑ready: Consistent
Performance Specifications
|
Item |
Specification |
|
Membrane Material |
Hydrophilic PVDF |
|
Nominal Pore Size |
0.02 μm |
|
Effective Membrane Area |
56 m2 |
|
Module Dimensions |
Φ180 × 1919 mm |
|
Design Flux (20°C) |
1.8~2.5 m3/h per module |
|
Maximum Permeate Flow |
6.0 m³/h per module |
|
Max. Operating Pressure |
0.60 MPa |
|
Max. Air Flow |
5.1 m³/h |
|
Max. Backwash Flow |
1.8 m³/h per module |
|
Operating Temperature |
1~40 °C |
|
Operating pH Range |
2~11 |
|
Cleaning pH Range |
1~12 |
|
Dry Weight |
Approx. 32 kg |
|
Wet Weight |
Approx. 36 kg |
|
Filtration Mode |
Dead-end / cross-flow |
Recommended Operating Conditions
-
Inlet turbidity: ≤20 NTU
-
Backwash duration: 30~60 seconds per cycle
-
Air scour flow rate: 0.5~1.0 Nm³/h per module
-
Chemical enhanced backwash (CEB): Recommended with NaClO, citric acid, NaOH
-
Maintenance cleaning: Periodic soaking with NaClO and acid as needed
Mechanical & Structural Parameters
Module shell: UPVC
Sealing material: Epoxy resin + EPDM
Connection port: Standard flange / threaded connector (according to assembly)
|

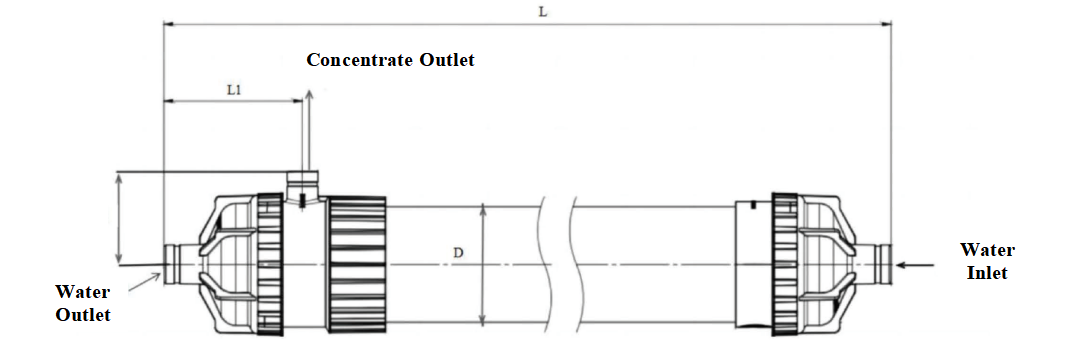

UF05-180 |
|||||||
|
Item |
L |
L1 |
L2 |
D |
Inlet |
Outlet |
Concentrate |
|
（mm） |
1919 |
216 |
145 |
180 |
DN50 Copylin |
DN50 Copylin |
DN50 Copylin |
