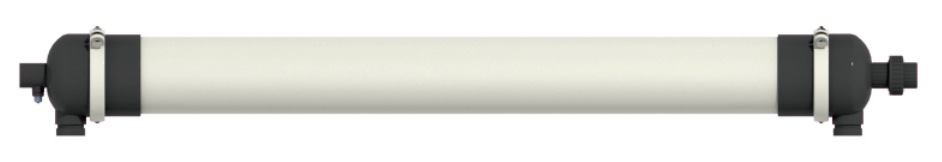

UF03-160

Product Introduction

Application Field

Drinking water purification

NF/RO pretreatment

municipal & industrial wastewater treatment

reclaimed water reuse projects

food & beverage

pharmaceutical water pretreatment

Product Features

1：

High-Strength PVDF Membrane: Adopts hydrophilically modified PVDF material, featuring excellent chemical stability, acid and alkali resistance, and oxidation resistance, ensuring long service life under complex water quality conditions.

2：

Superior Anti-Fouling Performance: Outside-in filtration design, easy to clean through backwash and air scour, effectively removing pollutants on the membrane surface and maintaining stable flux.

3：

High Permeability: Stable design flux, low energy consumption, and high treatment efficiency, suitable for large water volume treatment with compact equipment and small footprint.

4：

Reliable Quality: All modules undergo strict integrity testing before delivery, ensuring no leakage and safe operation in practical applications.

5：

Flexible Application: Suitable for various scenarios such as drinking water purification, RO pretreatment, and wastewater reuse; compatible with automatic control systems for fully automated operation.

Performance Specifications

Item	Specification
Membrane Material	PVDF (Hydrophilically Modified)
Nominal Pore Size	0.03 μm
Effective Membrane Area	33 m2
Module Dimensions	Φ160 × 1800 mm
Design Flux (20°C)	1.8~2.5 m3/h per module
Max. Permeate Flow	6.0 m³/h per module
Max. Operating Pressure	0.60 MPa
Max. Trans-membrane Pressure (TMP)	0.20 MPa
Max. Backwash Pressure	0.25 MPa
Operating Temperature	1~40 °C
Operating pH Range	2~11
Cleaning pH Range	1~12
Dry Weight	Approx. 25 kg
Wet Weight	Approx. 41 kg
Filtration Mode	Dead-end / cross-flow

Recommended Operating Conditions

Inlet turbidity: ≤ 20 NTU
Backwash duration: 30~60 seconds per cycle
Air scour flow rate: 0.5~1.0 Nm³/h per module
Chemical enhanced backwash (CEB): Recommended with NaClO, citric acid, NaOH
Maintenance cleaning: Periodic soaking with NaClO and acid as needed

Mechanical & Structural Parameters

Module shell: UPVC

Sealing material: Epoxy resin + EPDM

Connection port: Standard flange / threaded connector (according to assembly)

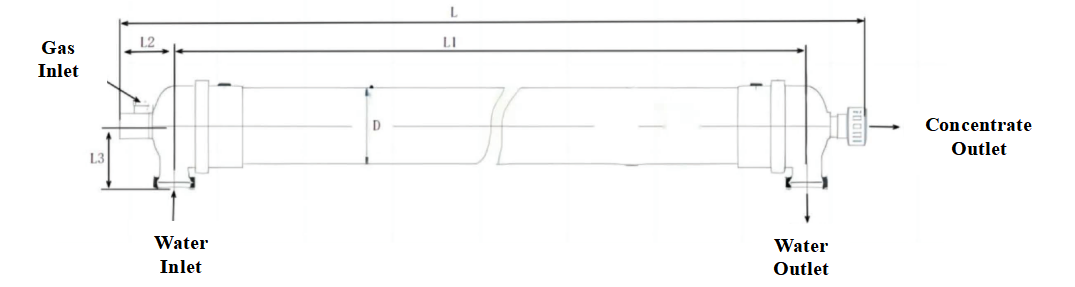

UF03-160 Dimensional Size
L	L1	L2	L3	L4	D	Inlet	Outlet	Concentrate
1816	1730	1386	172	130	160	DN32	DN32	DN32
