UF04-165

Product Introduction

Application Field

municipal water

wastewater reclamation

RO pretreatment

industrial process water

Product Features

1：

High Flux: 50 m² area, high permeability PVDF

2：

High Strength: Resistant to breakage, long service life

3：

High Turbidity Resistance: Direct treatment up to 200 NTU with AS/BW

4：

Low Chemical Usage: Effective cleaning with standard chemicals

5：

RO‑Ready: Produces

Performance Specifications

Item	Specification
Membrane Material	PVDF (Hydrophilically Modified)
Nominal Pore Size	0.03 μm
Effective Membrane Area	50 m2

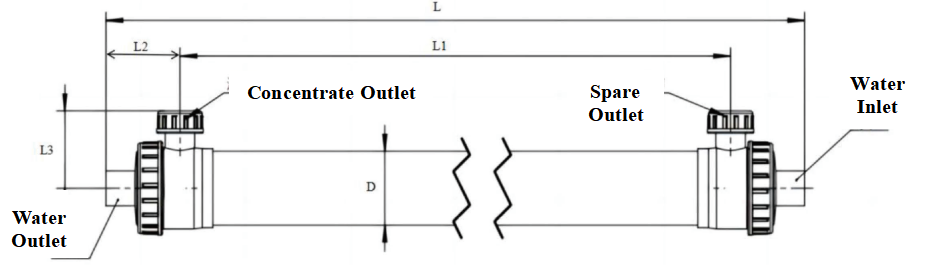

Module Dimensions	Φ165 × 2418 mm
Design Flux (20°C)	1.8~2.5 m3/h per module
Maximum Permeate Flow	6.0 m³/h per module
Max. Operating Pressure	0.60 MPa
Max. Trans-membrane Pressure (TMP)	0.20 MPa
Max. Backwash Pressure	0.25 MPa
Operating Temperature	1~40 °C
Operating pH Range	2~11
Cleaning pH Range	1~12
Dry Weight	Approx. 30 kg
Wet Weight	Approx. 60 kg
Filtration Mode	Dead-end / cross-flow
